| JCBC-ALLEN
BOLTS |
|
| |
| |
JCBC-JOINT
CONNECTOR BOLT WITHOUT SHOULDER - M6 SERIES
These Bolts are generally used in assembly/combination
with any wood insert or ordinary Nuts, also
used in sub assemblies.
Available in Black, Nickel etc… Generally
M6 with various lengths available to join
different thickness of Boards, Head Dia is
13mm, and the hex socket/allen is 4 mm
APPLICATION : Heavy Duty applications, Low
to Medium Duty applications, Computer Furniture,
Kitchen Cabinets, Project Furniture, Showroom
Furniture. Dining Tables, Bed, Structurals,
Tables, Home and Office Project Furniture,
any K/D Furniture Systems……..
|
| |
|
|
| |
| ITEM
CODE |
DESCRIPTION |
SIZE
dia X L |
HEAD
DRIVE |
HEAD
DIA |
| |
|
|
|
|
| K9A |
JCBC-ALLEN BOLT |
M6 x 15 |
HEX-4mm |
13MM |
| K9B |
JCBC-ALLEN BOLT |
M6 x 20 |
HEX-4mm |
13MM |
| K9C |
JCBC-ALLEN BOLT |
M6 x 25 |
HEX-4mm |
13MM |
| K9 |
JCBC-ALLEN BOLT |
M6 X 30 |
HEX-sock |
13MM |
| K10 |
JCBC-ALLEN BOLT |
M6 X 40 |
HEX-sock |
13MM |
| K10A |
JCBC-ALLEN BOLT |
M6 X 45 |
HEX-sock |
13MM |
| K11 |
JCBC-ALLEN BOLT |
M6 X 50 |
HEX-sock |
13MM |
| K11A |
JCBC-ALLEN BOLT |
M6 X 55 |
HEX-sock |
13MM |
| K12 |
JCBC-ALLEN BOLT |
M6 X 60 |
HEX-sock |
13MM |
| K13 |
JCBC-ALLEN BOLT |
M6 X 65 |
HEX-sock |
13MM |
| K13A |
JCBC-ALLEN BOLT |
M6 X 70 |
HEX-sock |
13MM |
| K13B |
JCBC-ALLEN BOLT |
M6 X 75 |
HEX-sock |
13MM |
| K14 |
JCBC-ALLEN BOLT |
M6 X 80 |
HEX-sock |
13MM |
| K15 |
JCBC-ALLEN BOLT |
M6 x 90 |
HEX-4mm |
13MM |
| K16 |
JCBC-ALLEN BOLT |
M6 x 100 |
HEX-4mm |
13MM |
| K16A |
JCBC-ALLEN BOLT |
M6 X 125 |
HEX-sock |
13MM |
| K16B |
JCBC-ALLEN BOLT |
M8 X 50 |
HEX-sock |
14MM |
| K16C |
JCBC-ALLEN BOLT |
M8 X 100 |
HEX-sock |
14MM |
|
| ALSO
AVAILABLE ON REQUEST: M8
IN DIFFERENT LENGTHS |
|
| ALL DIMENTIONS
IN mm |
|
| CAPS |
 |
|
| AVAILABLE
IN DIFFERENT COLOURS-----BLACK, OFF-WHITE,
BEECH, IVORY ETC… |
|
| |
| STANDARD
PLATING :BLACK OXIDE, |
| FOR
OTHER OPTIONS PLEASE |
 |
|
|
|
|

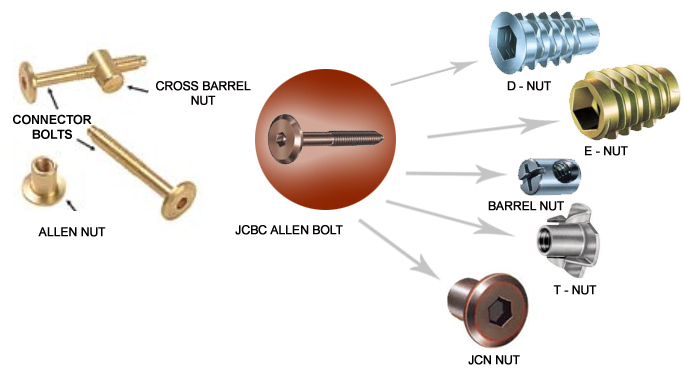

| ASSEMBLY
COMBINATIONS |
 |
|
|
| |
|
|
| |
|
|
|
| |
 |
