| INSERT
NUT: E-NUT |
|
| |
| |
E NUT
This is a very popular insert nut for assemblies
in knock down furniture. These insert nuts
can be directly screwed, in a pre drilled
pilot hole, with the help of allen key. It
has selftap threads on the outer, and can
be driven into the Base Material of a furniture
assembly. The internal threads ensure any
Joint Connectors Bolts to be secured in for
assembly.
The Unique external thread ensures positive
locking and offers strong resistance against
pull out due to Vibration, Torsion or Tensile
loads this insert nut does not have a flange,
which enables use of this nut in CURVED
SURFACES. |
| |
|
|
| |
| ITEM
CODE |
DESCRIPTION |
SIZE
dia X L |
HEAD
DRIVE |
| |
|
|
|
| K30 |
Insert Nut- E nut |
M6 X 13 |
Allen-6mm. |
| K32 |
Insert Nut- E nut |
M6 X 20 |
Allen-6mm. |
| K32A |
Insert Nut- E nut |
M8 X 13 |
Allen-8mm. |
| K32B |
Insert Nut- E nut |
M8 X 20 |
Allen-8mm. |
| |
|
|
|
|
| All dimensions in mm |
|

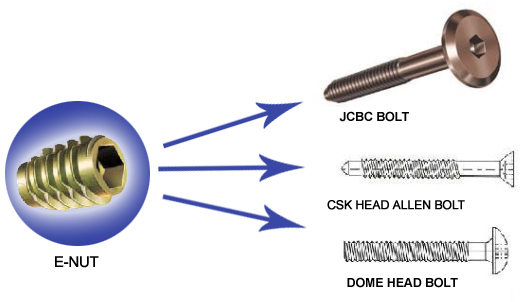

| ASSEMBLY
COMBINATIONS |
 |
|
|
| |
|
|
| |
|
|
|
| |
 |
