| CSK
HEAD ALLEN SCREWS |
|
| |
| |
CSK
HEAD ALLEN SCREWS
These are available in various types, mainly
counter sunk [CSK] Allen Screws, the most
common socket head cap screw , also available
Dome allen screw. Special feature - conical
tip end for easy insertion. These screws are
also part of joining systems and is very widely
used in conjuction with TEE Nut, D Nut, Barrel
Nut. Generally a CSK counter bore is required
on work piece, to use these screws, so that
these screws totally flush with surface. These
screws have a small pilot conical end for
easy insertion and to see that the wood does
not chip off at the surface hole. Also has
a high aesthetic look and has an allen or
socket head, enabling fitment with the help
of allen keys. |
| |
|
|
| |
| ITEM
CODE |
DESCRIPTION |
SIZE
dia X L |
HEAD
STYLE |
HEAD
DRIVE |
| |
|
|
|
|
| K73 |
Allen CSK- withoutpoint |
M6 X30 |
FLAT |
HEX-4mm |
| K74 |
Allen CSK- withoutpoint |
M6 X40 |
FLAT |
HEX-4mm |
| K75 |
Allen CSK- withoutpoint |
M6 X 50 |
FLAT |
HEX-4mm |
| K78 |
Allen CSK- withoutpoint |
M6 X 100 |
FLAT |
HEX-4mm |
| K79 |
Allen CSK with point |
M6 X 70+6 |
FLAT |
HEX-4mm |
| K80 |
Allen CSK with point |
M6 X 40+6 |
FLAT |
HEX-4mm |
| |
|
|
|
|
|
| ALL DIMENTIONS
IN mm |
|
|
|
| CAPS |
 |
|
| AVAILABLE
IN DIFFERENT COLOURS-----BLACK, OFF-WHITE,
BEECH, IVORY ETC… |
|
| |
| STANDARD
PLATING :ZINC YELLOW, |
| FOR
OTHER OPTIONS PLEASE |
 |
|
|
|
|

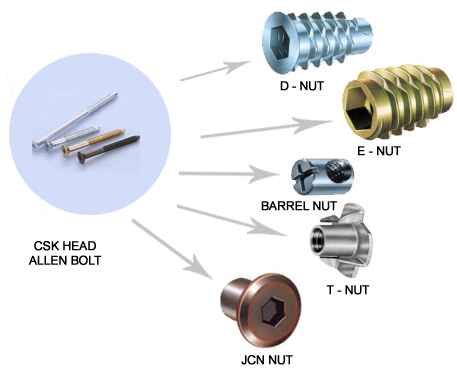

| ASSEMBLY
COMBINATIONS |
 |
|
|
| |
|
|
| |
|
|
|
| |
 |
